Extended Theory - Boolean Logic

Making decisions in programming hinges on evaluating conditional expressions, which result in a value of either true or false. In C#, true is represented as 1 and false as 0.

Boolean Logic

Conditional expressions serve as tests that produce these two outcomes. These expressions can be combined using Boolean operators based on Boolean logic, which is fundamental to computer operations. For our purposes, there are five main Boolean operations:

  • AND
  • OR
  • NOT
  • NAND
  • NOR

Each operator typically takes two inputs, which we will denote as A and B, producing a single output, Q. These operations are often described using a truth table, where 1 represents true and 0 represents false.

AND Operator

The AND operator produces a true output, Q, only when both A and B are true. All conditions must be satisfied:

A B Q
0 0 0
0 1 0
1 0 0
1 1 1

This can be visualized using a Venn diagram, demonstrating the intersection of conditions for three variables:

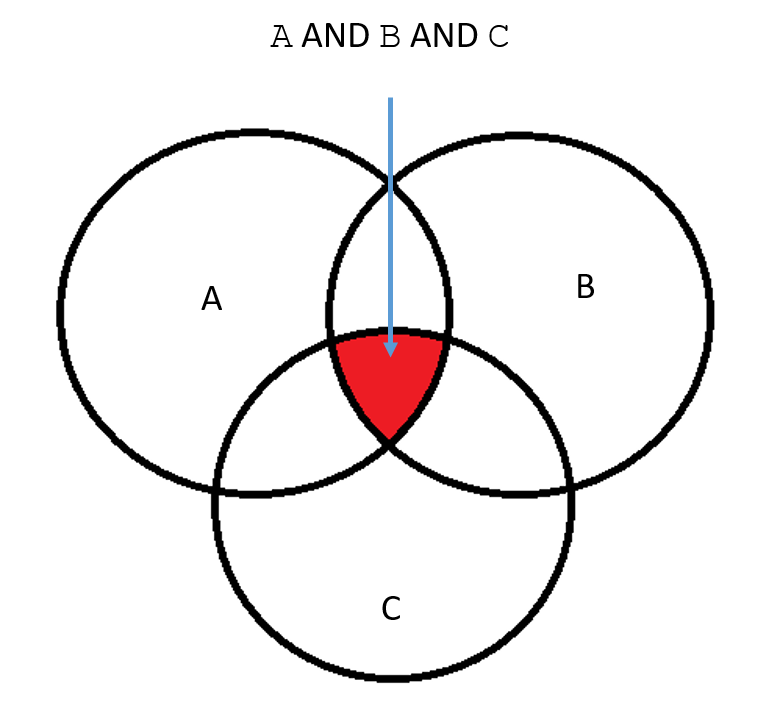

A AND B AND C are true
A AND B AND C are true

In C#, this can be implemented as:

1
2
3
4
if (A && B && C)
{
    // Execute this block if A, B, and C are all true
}

OR Operator

The OR operator yields a true output, Q, when at least one of the inputs (A or B) is true:

A B Q
0 0 0
0 1 1
1 0 1
1 1 1

The corresponding Venn diagram for three inputs would be:

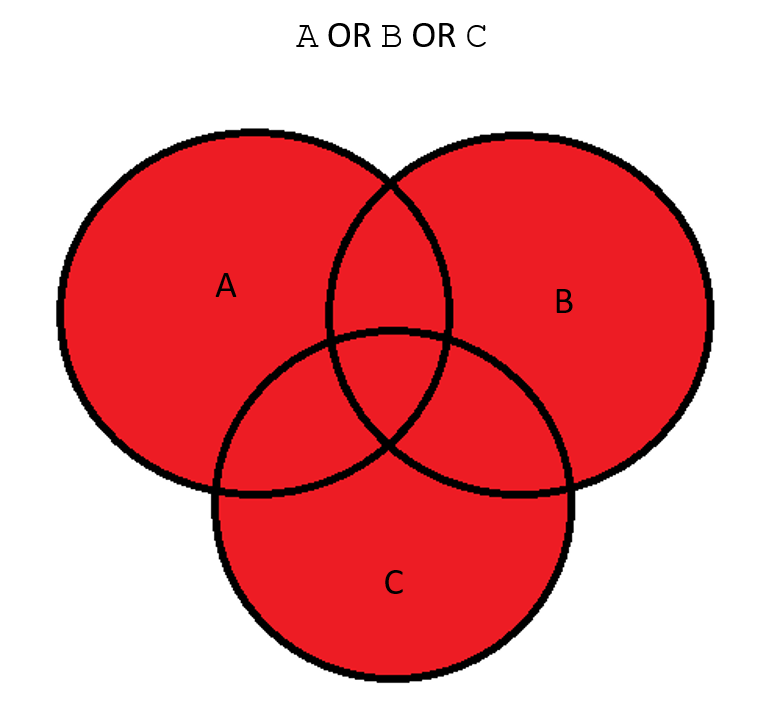

A OR B OR C are true
A OR B OR C are true

In C#, this would look like:

1
2
3
4
if (A || B || C)
{
    // Execute this block if any of A, B, or C is true
}

NOT Operator

The NOT operator differs from the others as it takes only one input and outputs the opposite (or complement):

A Q
0 1
1 0

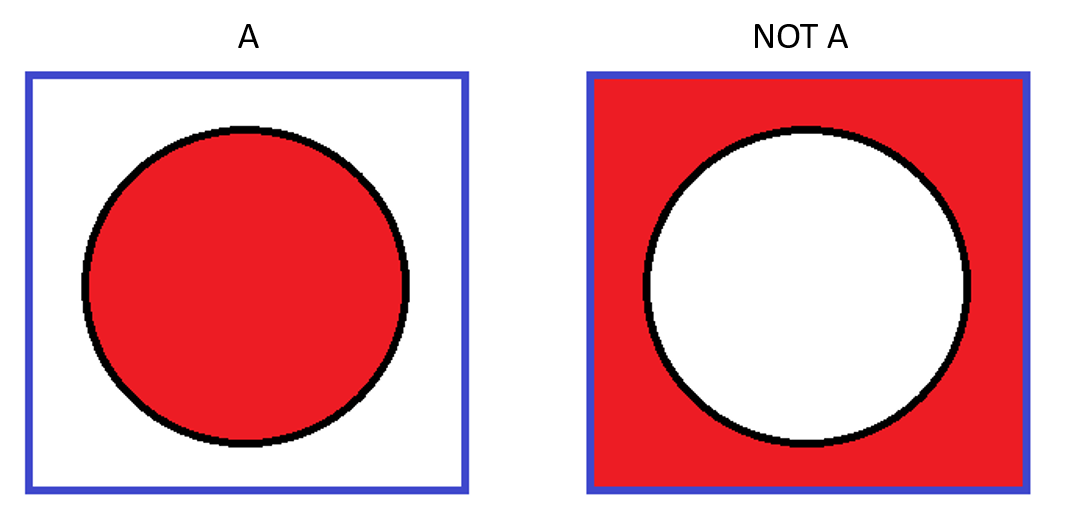

NOT A
NOT A

In C#, the NOT operator is represented by an exclamation mark (!) preceding the condition:

1
2
3
4
if (!(A && B && C))
{
    // Execute this block when the condition is false
}

NAND and NOR Operators

The final two operators, NAND and NOR, are simply the negation of the AND and OR operations, respectively:

  • NAND: NOT (A AND B)
  • NOR: NOT (A OR B)

Compound Conditionals and De Morgan's Laws

Working with compound conditional statements can lead to confusion. Consider these two statements:

1
2
3
4
// [1]
if (a >= 0 && a <= 10) { ... }
// [2]
if (a >= 0 || a <= 10) { ... }
  • The first statement will evaluate to true if a is in the range of 0 to 10.
  • The second statement evaluates to true for every value of a, since one of the conditions (a >= 0) is always satisfied for non-negative values.

Looking back at Venn diagrams, the AND operator represents the intersection, while the OR operator represents the union of the sets.

If we want to check whether a value is not in the range of 0 to 10, we might write:

1
2
// [3]
if (!(a >= 0 && a <= 10)) { ... }

However, simplifying this incorrectly to:

1
2
// [4]
if (a < 0 && a > 10) { ... }

will produce incorrect results.

De Morgan's Laws

The laws governing simplification of Boolean expressions were established by the British mathematician Augustus De Morgan. These rules state:

  • NOT(A AND B) = NOT A OR NOT B
  • NOT(A OR B) = NOT A AND NOT B

For our earlier statement [3], we can use De Morgan's laws to rewrite it as:

1
2
// [5]
if (!(a >= 0) || (!(a <= 10))) { ... }

Recognizing that !(a >= 0) translates to a < 0, and !(a <= 10) translates to a > 10, we can simplify our expression to:

1
2
// [6]
if (a < 0 || a > 10) { ... }

By removing the NOTs from the conditional, the code becomes clearer and easier to maintain. Applying simplification rules such as De Morgan's laws is a valuable skill in Boolean algebra.
